Production 4500 M³H Sand Suction Dredger Mining Dredging Equipment
Is Professional And Reliable In India
1. About Leader Dredger Sand Suction Dredger:
Cutter suction dredgers are widely used in rivers and lakes, ports
and waterways.
The cutter suction dredger can handle the sand, mud and gravel in
various dredging projects.
The cutter suction dredger uses high-quality equipment to achieve
the highest performance. Let customers spend the lowest cost to get
the highest configuration.
All configurations can achieve low failure, low fuel consumption,
high capacity and high efficiency.
1, Consulting and design services
2, Provide program support based on customer's working conditions
3, Provide accessories recommendations based on customer
requirements
4, Site installation guide
5, Overall debugging
6, Pre-job training
7, Tracking guidance service
8, Provide one year after-sales
9, Provide permanent accessories or consulting services
2. Why Choose Leader Dredger Sand Suction Dredger:
1. Leader Dredger dredger is adaptable. Cutter suction dredgers can
be widely used in rivers, lakes, oceans, reservoirs, etc. for sand
and mud dredging, waterway cleaning and reclamation projects.
2. High efficiency. Cutter suction dredger can dredge and discharge
sand at the same time, without the need for other vessels to
transport. Therefore, the cost will be greatly reduced, they can
reach a large production capacity of several thousand cubic meters
per hour and a discharge distance of several kilometers.
3.Dredger is easy to operate. With the help of hydraulic system and
PLC control system, all dredger operations can be completed in the
operation room.
4. Quick disassembly and assembly.
3. Leader Dredger LD4500 Sand Suction Dredger Technical
Specifications
A . Dredging Features
| Standard dredging depth(m) | 15m |
| Maximum mixture capacity(m/h) | 4500m³/h |
| Solid capacity(approx) | 900m³/h |
| Dredging pump mode | 550/500mm |
B . Principal characteristics
| Overall length(m) | 38.5m |
| Breadth(m) | 7.8m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 2000m |
| Total dry weight approx(MT) | 200MT |
| Ladder length | 21m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance,
abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 4500m³/h |
| Solid capacity(approx) | 900m³/h |
D . Engine
| Main diesel engine(Cummins) | CAT 3512C 955kw |
| Auxilary engine | CAT C9.3 325KW |
| Total fuel consumption | ≤205kg/hr |
| Extra emergency generator set | 30kw(40Hp) |
4. Sand Suction Dredger Desgin
1. Hydraulic pumps drive cutter, winches spud rams
2. Main engine drives pump through gearbox
3. Pump inside engineroom
4. Design of high production long distance and reliability, easy
control, simple maintenance
5. Australian technology pump
6. Famous European-brand electric system and hydraulic system
7. Engine room big and cool, and easy to maintain
8. Dredge can be equipped with several options
9. Such as:Anchor booms/Spud carriages/Increasing The Dredging
Depth
10. Self-Propell/Pump Booster station/GPS dredging System
5. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud
rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra
emergency pump can drive all hydraulic parts using the extra
emergency generator set.
6.Leader Dredger Sand Suction Dredger Customer

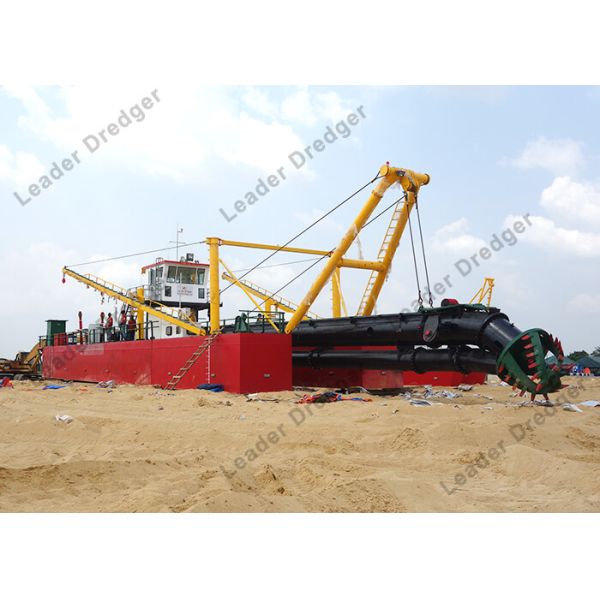

7. LD4500 Sand Suction Dredger
