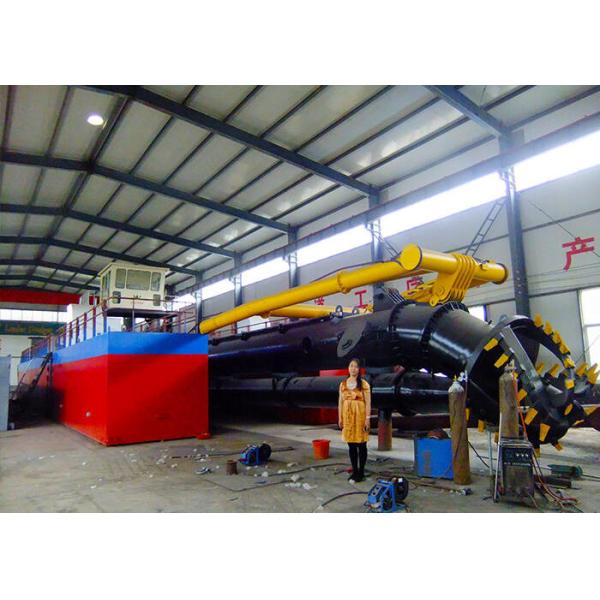

Environmental Dredging Equipment Cutter Suction Dredger For Easy
Truck Transportation
1. About Leader Dredger Sand Cutter Suction Dredger
Reliable and efficient
Leader Dredger is known for its solid structure, reliable operation
and outstanding performance. To date, Leader Dredger has provided
more than 100 dredgers worldwide. With rich experience in design
and production, we can provide you with ideal dredging equipment
Service support
Leader Dredger can provide professional maintenance support,
equipment training programs, and dredging consulting services.
And manual guidance and commissioning of equipment
2. Cutter Suction Dredger Feature:
| 1. Heavy duty, high concentration ratio, excellent particle margin
and long discharge distance |
| 2. Optimal configuration of power and hydraulic units (less
operating costs) |
| 3. Detachable structure, easy to disassemble and transport. |
| 4. Dual powerful auger drives (unlimited forward and backward) |
| 5.Large working range of outrigger arm |
| 6. Equipped with a self-propelled system that can be moved to
different work locations or towed by tugboat |
| 7. Cutter tip can be replaced according to different situations |
| 8. It is easy to overhaul all parts, especially vulnerable parts of
sparse edge pump. |
| 9. Fresh water cooling system. |
| 10. Safe and easy to operate |
11.Can be designed and manufactured according to your requirements |
3. Leader Dredger Cutter Suction Dredger Description:
Cutter suction dredgers are usually easy to transport by road, rail
or ship due to their reasonable size and weight of various
removable modules. The complete cutter suction dredger consists of
a main pontoon and two side pontoons, which are mounted on the main
pontoon using heavy-duty steel eyes and pins at the bottom of the
hull, which are connected at deck height. The pontoon is a welded
steel structure with heavy frames, beams and longitudinal beams.
When dredging, if necessary, additional reinforcement can be placed
to withstand all forces. Cutter suction dredgers are widely used
for river silt cleaning, lake and pond decontamination, mining
projects, port cleaning and sand making.
4. About Cutter Suction Dredger Customer
5. Leader Dredger LD1200 Sand Cutter Suction Dredger Service:
| 1. We will provide 12 months of quality assurance of diesel engine,
generator, gear box, hydraulic system and control system free of
charge |
| 2. 24-hour after-sales service. |
| 3. Engineers can board the ship for installation and train
operators |
4. We have experienced and qualified technicians and engineers who
can design reasonable and feasible solutions according to customer
requirements and working conditions |
6. Production time:
Each series of Leader Dredger dredgers will have one in stock,
which is convenient for fast delivery.
But when the construction environment is complex and custom
dredgers are required, we usually need 1 to 3 months to produce.
Leader Dredger cutter suciton dredger is portable and can be
transported and disassembled by road, rail or sea and land.
7. LEADER DREDGER LD1200IP TECHNICAL SPECIFICATIONS
Dredging Features |
Standard dredging depth(m) Maximum mixture | 12m |
capacity(m/h) | 1200m³/h |
Solid capacity(approx) | 240m³/h |
Dredging pump mode | 350/300mm |
|
|
Principal characteristics |
Overall length(m) | 28m |
Breadth(m) | 6.8m |
Draught(m) | 1.3m |
Discharge distance(m) | 700m |
Total dry weight approx(MT) | 120MT |
Ladder length | 16m |
|
|
Dredge pump: Australia technology Pump |
By alloy cast iron material for better abrasion resistance,
abrasive, hardness, more than68HRC. Bigger working capacity, more
efficiency, driven through gearbox. |
Maximum mixture capacity(m/h) | 1200m³/h |
Solid capacity(approx) | 240m³/h |
|
|
Engine |
Main diesel engine(Cummins) | 448kw(600hp) supply power for dredge pump |
Total fuel consumption | ≤89kg/hr |
Extra emergency generator set | 22kw(30Hp) |
8. Delivery:
Carried by trucks to the loading seaport, and then by bulk vessels
to the destination seaport.
