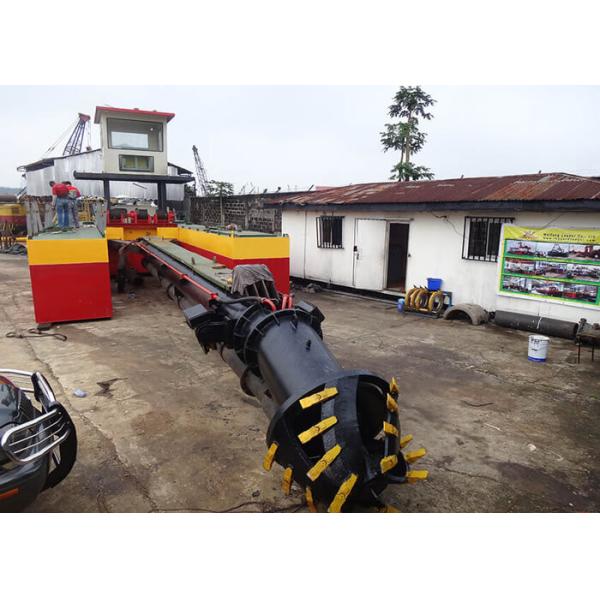

Customize Solution 1000m³/H Sand Cutter Suction Cummins Engine
1. Why Choose Leader Dredger
1. Leader Dredger has signed a long-term after-sales service
agreement with the customer.
2. We can provide reasonable and practical designs according to
customer requirements.
3. We send engineers to assemble and test the machine within the
period stipulated in the contract.
4. During the warranty period, if quality problems occur, we will
provide free repairs.
5. We provide customers with free operation and maintenance
training.
6. We provide high quality accessories at low prices.
7. We will keep records for customers who have long-term follow-up
services.
2. About Leader Dredger:
Leader Dredger is a manufacturer of hydraulic cutter suction
dredgers. It is the only manufacturer specializing in the
production of cutter suction dredgers in China. It integrates
production, design, research and development, export and
after-sales service. China's most professional dredger production
company has branches in Asia, Russia, the Middle East, Africa and
other countries. We have nearly 20 years of production experience
and our products are sold to more than 20 different countries. We
have customized a large number of equipment for different
environments, and have been unanimously approved by customers.
We have produced more than 100 cutter suction dredgers, and we are
specialized in custom production of dredgers.
3. LEADER DREDGER LD1000IP TECHNICAL SPECIFICATIONS
General |
| Type | LD1000IP |
| Function | Sand mining and maintenance dredging |
| |
Dredging Features |
| Standard dredging depth(m) Maximum mixture | 10m |
| capacity(m/h) | 1000m³/h |
| Solid capacity(approx) | 200m³/h |
| Dredging pump mode | 300/250mm |
| |
Principal characteristics |
| Overall length(m) | 24m |
| Breadth(m) | 6m |
| Draught(m) | 1.2m |
| Discharge distance(m) | 600m |
| Total dry weight approx(MT) | 90MT |
| Ladder length | 14m |
| |
Dredge pump: Australia technology Pump |
| By alloy cast iron material for better abrasion resistance,
abrasive, hardness, more than68HRC. Bigger working capacity, more
efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 1000m³/h |
| Solid capacity(approx) | 200m³/h |
| |
Engine |
| Main diesel engine(Cummins) | 298kw(350hp) |
| Total fuel consumption | ≤59.6kg/hr |
| Extra emergency generator set | 30rpm |
| |
Cutter |
| Power at shaft | 40kw(54Hp) |
| Size | 950mm |
| Rotation speed | 30rpm |
| |
Winches |
| Ladder winch | 1urnit |
| Swing winches | 2units |
| All winches driven by independent hydraulic system. |
| |
Spuds |
| Quantity | 2pcs |
| Length | 14m |
| Diameter | 330mm |
| |
Deck crane |
| Utting weight | 3MT |
4. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud
rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra
emergency pump can drive all hydraulic parts using the extra
emergency generator set.
5. Electric System:
European-brand electricsystem Very guaranteed the quality and
operation of the whole dredger for long time
Equipped with an extra 30kw emergency generator set for emergency
power supply
6. Include:
All necessary tools for connecting or disconnecting the
pontoons, and for the maintenance of the dredge pump and all
engines
Toile
Fire fighting apparatus
Life buoy and jackets
Accommodation room
7. Features:
| Easy to assemble and dismantle | Advanced profssional design |
| Deliver by road, rail or sea | Spare parts available |
| One man operation | Completely tested before deliverie |
| Advanced hydraulic system | with air conditioning |
| Water cooled diesel engines | Customizations on users'demand |
